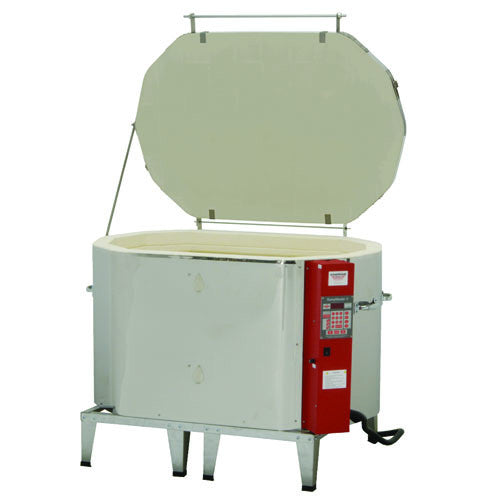

The RM 2522 is designed for all firing up to cone 03 (2000°F). The oval shape creates a large volume and the load friendly depth of 22" is a welcome feature. Perfect for production and busy ceramic studios.
Chamber Dimensions:
41" Wide x 25.25" Long x 22.25" Deep - 11.2 Cubic Feet
(104cm Wide x 64cm Long x 56.5cm Deep - 317L)
Outside Dimensions:
50" Wide x 30.25" Long x 35.25" H (with 8" stand)
(127cm Wide x 77.5cm Long x 89.5cm H)
Maximum Use Temperature:
2000°F (1093°C) / Cone 03
Standard Electrical:
240 Volts, 47 Amps, 11,280 Watts, 50/60Hz, Single Phase
Power Cord Plug Configuration - NEMA 6-50
The 2522 is equipped with an electrical plug which means a standard 50A receptacle is all that is needed. No direct wiring required!
A relay is basically a switch. In the case of a kiln, it's the switch that turns the heating elements on and off to control chamber temperature. Solid State Relays provide accuracy, last the lifetime of the kiln, and has an overall better rated design.
